Sliding doors
Porte coulissante coupe-feu

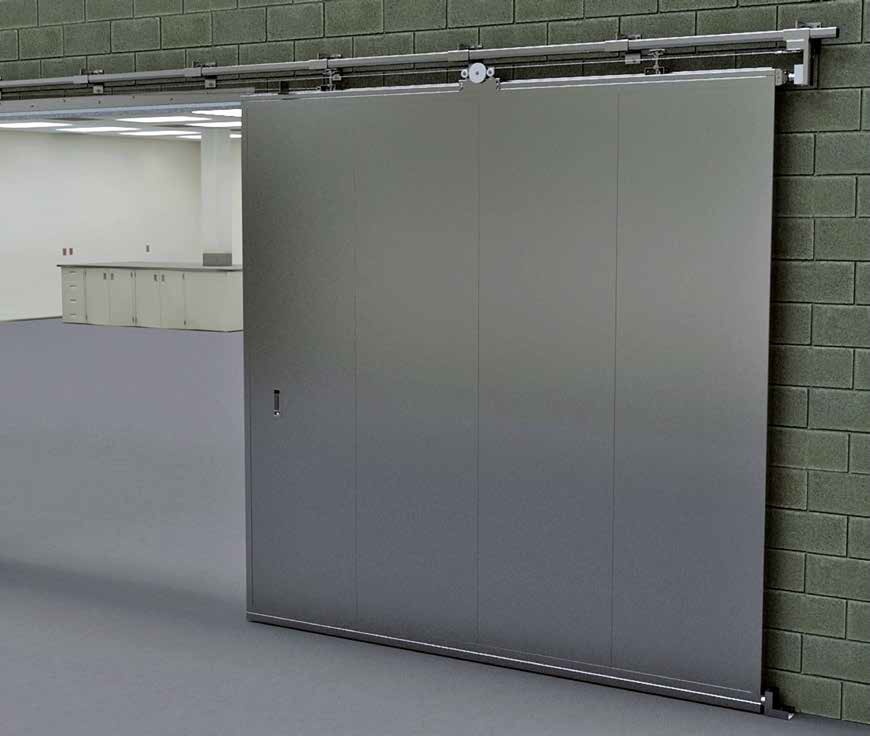

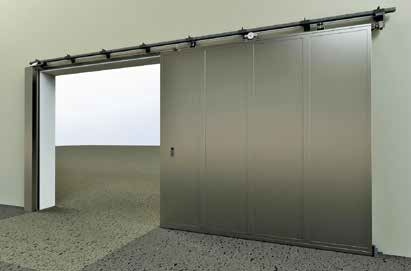

Single-leaf sliding fire door, EI2 60 or EI2 120, parked to the side.
Reply within 48 business hours · +212 (0) 661 786 437
Description
A sliding fire door keeps the full height under the lintel. Open, the leaf is stacked to the side; closed, it compartments for 60 or 120 minutes.
Where it is used
It suits warehouses, workshops, car parks and links between two halls. The way stays clear for trucks as long as the door is open.
Technical characteristics
- EI2 60 or EI2 120 according to the version
- Leaf about 80 mm, galvanized sheet both faces, rock wool 160 kg/m³, Euroclass A1
- Usual openings 1,400 to 5,400 mm wide and 2,000 to 4,880 mm high
- Top track, trolleys and floor guide
- Closing by counterweight, pulleys and cables, seals and threshold matched to the test
Standards and installation
Reference tests follow EN 1634-1 and classification follows EN 13501-2. Side stack and leaf weight are checked before the track is fixed.
